SNAP™ Measurement Systems
SNAP™ Large FOV Video Measurement Systems are compact measuring systems that integrate perfectly from the shop floor, to the lab, or as part of an automated work cell. Rugged construction and an open work envelope make SNAP easy to implement in virtually any manufacturing setting.
All SNAP systems feature large field of view optics, high resolution cameras, and lighting custom-designed to optimize the image, creating a complete optical system. Camera, optics, lighting, and platform are matched and tuned for optimum performance.
SNAP-X software provides users with a simple, powerful interface for instant 2D measurement, virtual chart gaging, and profile analysis. Optional ZONE3 software combines Parallel Processing with intelligent routine Optimization resulting in faster programming and run times by measuring as many features as can be seen simultaneously.
Standard:
62 mm x 46 mm
The SNAP™ 100 is a compact unit equipped with a Large FOV Telecentric lens and a fixed stage with a 62 mm x 46 mm measuring area. SNAP-X metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Fixed stage with 62 mm x 46 mm measuring area
- SNAP-X Metrology Software
- Optional ZONE3 Metrology Software
Standard:
250 x 100 mm
The SNAP™ 200 is a compact unit equipped with a Large FOV Telecentric lens and a motorized stage with a 250 x 100 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. SNAP-X metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric dual magnification optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Motorized axes with up to 250 x 100 mm measuring range
- SNAP-X Metrology Software
- Optional ZONE3 Metrology Software
Standard:
250 x 150 mm
The SNAP™ 300 is a compact unit equipped with a Large FOV Telecentric lens and a motorized stage with a 250 x 150 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. SNAP-X metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric dual magnification optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Motorized axes with up to 250 x 150 mm measuring range
- SNAP-X Metrology Software
- Optional ZONE3 Metrology Software
Standard*:
450 x 450 mm

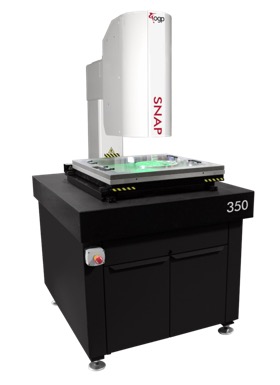

The SNAP™ 350 is a floor-based unit equipped with a Large FOV Telecentric lens and a motorized stage with a large 450 x 450 mm measuring area. Dual-Mag optics increase capability by providing a much larger magnification range, even within a program. SNAP-X metrology software supports simple “walk up and measure” use, comparison to an electronic overlay, creation and running of automatic programs, including complex measurements and GD&T. AutoID limits operator requirements.
- Large FOV, telecentric dual magnification optics
- Collimated back-light, programmable ring light, and coaxial surface light
- Motorized axes with up to 610 x 450 mm measuring range
- SNAP-X Metrology Software
- Optional ZONE3 Metrology Software
