Gage-Lab is partnered with Renishaw Fixtures to bring you CMM and Vision fixtures with a large variety of modular fixturing components. You can set up a part within minutes, reducing inspection time and eliminating the search for ways to hold your parts.

Call Gage-Lab Products today to increase your machine's performance with the right fixtures. (801) 716-2972


Using Renishaw fixtures can improve the throughput, reproducibility and accuracy of your inspection process with quick and repeatable fixturing set-ups.
Whether you are inspecting parts for aerospace, automotive, electronics, industrial or medical applications, Renishaw fixtures can provide a complete solution to your fixturing requirements and help to improve your inspection processes.




CMM Fixture kits
Screen Shot 2022-04-19 at 12.38.54 PM
  • Magnetic and clamping kits are used for holding steel, aluminum, plastic, ferrous and other nonferrous parts.
  • Clamping kits are used for holding aluminum, plastic, brass, titanium and other nonferrous parts.
  • Fixture base plates and components are available with English or Metric Threads.
  • Kits come in either 1/4-20, M8 or M4 thread size, or you can choose to build your own kit.
  • Components sold seperately for M12 thread size.
The R&R CMM fixture kit can be used with any type of CMM.  It is a quick, economical way to hold and secure parts for inspection.  The alpha-numeric threaded hole fixture plate and comprehensive set of labeled components allow the user to create a repeatable location of the part each and every time.  Parts can be inspected on a fixture within just a matter of minutes.

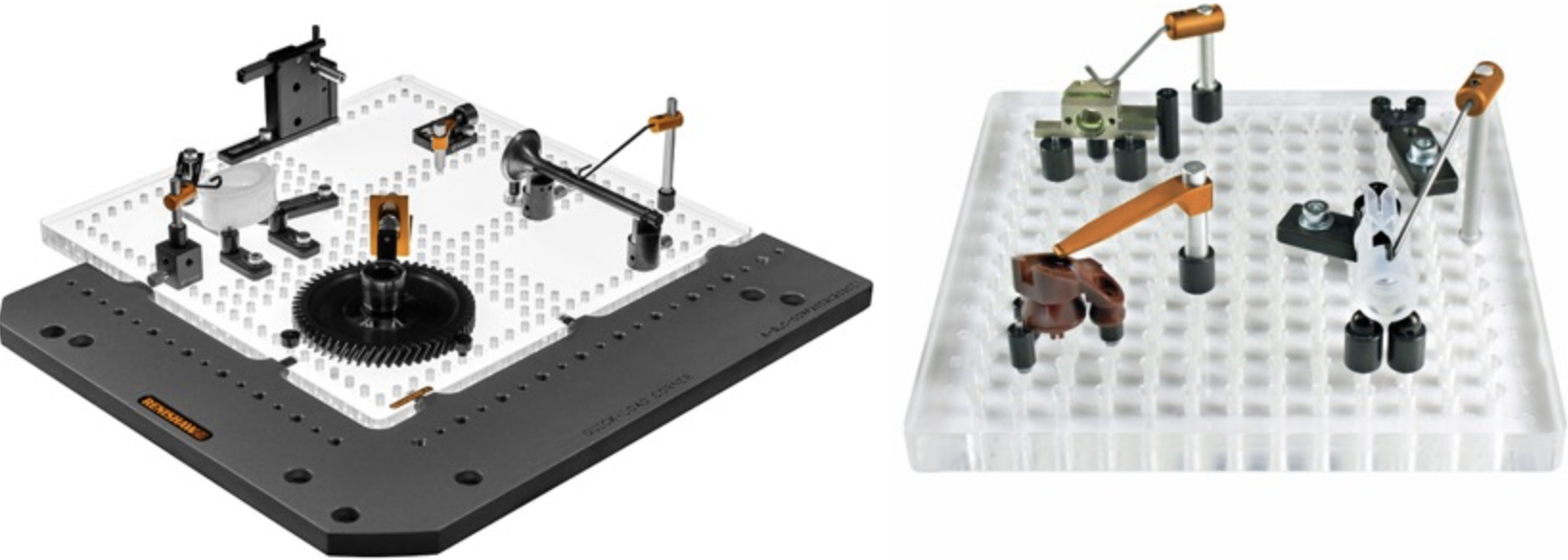

Vision Fixture kits

Renishaw's vision fixtures and acrylic base plates allow for back lighting and a clear, clean look at the part from your vision system and multi-sensor machines.

Renishaw vision fixtures provide repeatability and secure work-holding for any size, shape or type of part for measurement on your vision system. Hold even the smallest of parts in a wide variety of ways while maintaining a clear view of the part.
