SmartScope® Quest™ Systems
SmartScope® Quest™ systems are high-accuracy metrology systems designed to use a variety of sensors for full three-dimensional measurement. Offering the best optical performance available, the Quest™ uses patented TeleStar® 10:1 zoom lens that is completely telecentric and automatically calibrated throughout its range for distortion free, high-fidelity images.

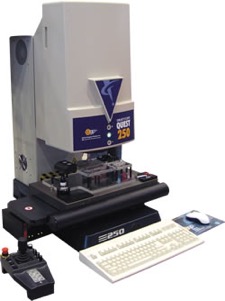

Smartscope® Quest™ 250 is an advanced-technology dimensional measuring system. This system incorporates a standard TeleStar® telecentric 10:1 zoom optics, touch probe, and micro-probes into a compact, benchtop platform. It is designed to measure smaller parts in situations where space is at a premium. XYZ Stage Travel: 300 x 150 x 200 mm
Smartscope® Quest™ 300 offers the measurement versatility and accuracy needed for the most critical, demanding parts. With an expanded measurement range to accommodate large parts, it combines state-of-the-art video and autofocus to deliver high productivity. Add optional TeleStar® telecentric interferometric through-the-lens (TTL) laser, touch probe, or micro-probe to configure a highly capable multisensor system. XYZ Stage Travel: 300 x 300 x 250 mm
Smartscope® Quest™ 450 is an extremely accurate system designed to incorporate optical, touch probe, micro-probes, and the patented TeleStar® telecentric TTL laser for versatility and accuracy. Standard 10:1 zoom optics provide the highest level of optical performance. This system is designed to measure large parts, or to accommodate fixtures of multiple parts or rotary indexers. XYZ Stage Travel: 450 x 450 x 250 mm with optional extended Y travel to 610 mm and extended Z travel to 300 or 400 mm
Smartscope® Quest™ 650 is the largest high-accuracy system from OGP. This system provides high throughput and high accuracy simultaneously. It comes standard with TeleStar® telecentric 10:1 zoom optics and high-speed linear motors in the X and Y axes, moving at a rapid 100 mm/sec. The Quest 650 takes multisensor metrology to the next level with the addition of an optional motorized heavy-duty dual rotary indexer for five-axis measurement capability. XYZ Stage Travel: 610 x 660 x 400 mm
Smartscope® Quest™ 800 is an extremely accurate floor model system designed to measure very large parts. This system comes standard with TeleStar® telecentric 10:1 zoom optics for the highest level of optical performance. It is also available with a wide range of contact and non-contact sensors for the ultimate in multi sensor versatility. XYZ Stage Travel: 190 x 815 x 250 mm, option Z travel of 300 mm
