OGP is recognized as a premier supplier of non-contact and multi-sensor measuring instruments around the world and has been a leader in video measurement technology since its inception. OGP offers a variety of metrology systems that accommodate parts of many sizes, in bench top and floor models with capabilities to satisfy engineering, development, and production requirements.
We offer the following OGP systems, covering everything from fast push-button walk up and measure systems, to the most feature and sensor rich systems that handle the toughest metrology applications:
Coordinate Measurement Machines
A NEW GENERATION OF LARGE FORMAT MULTI SENSOR CMMS

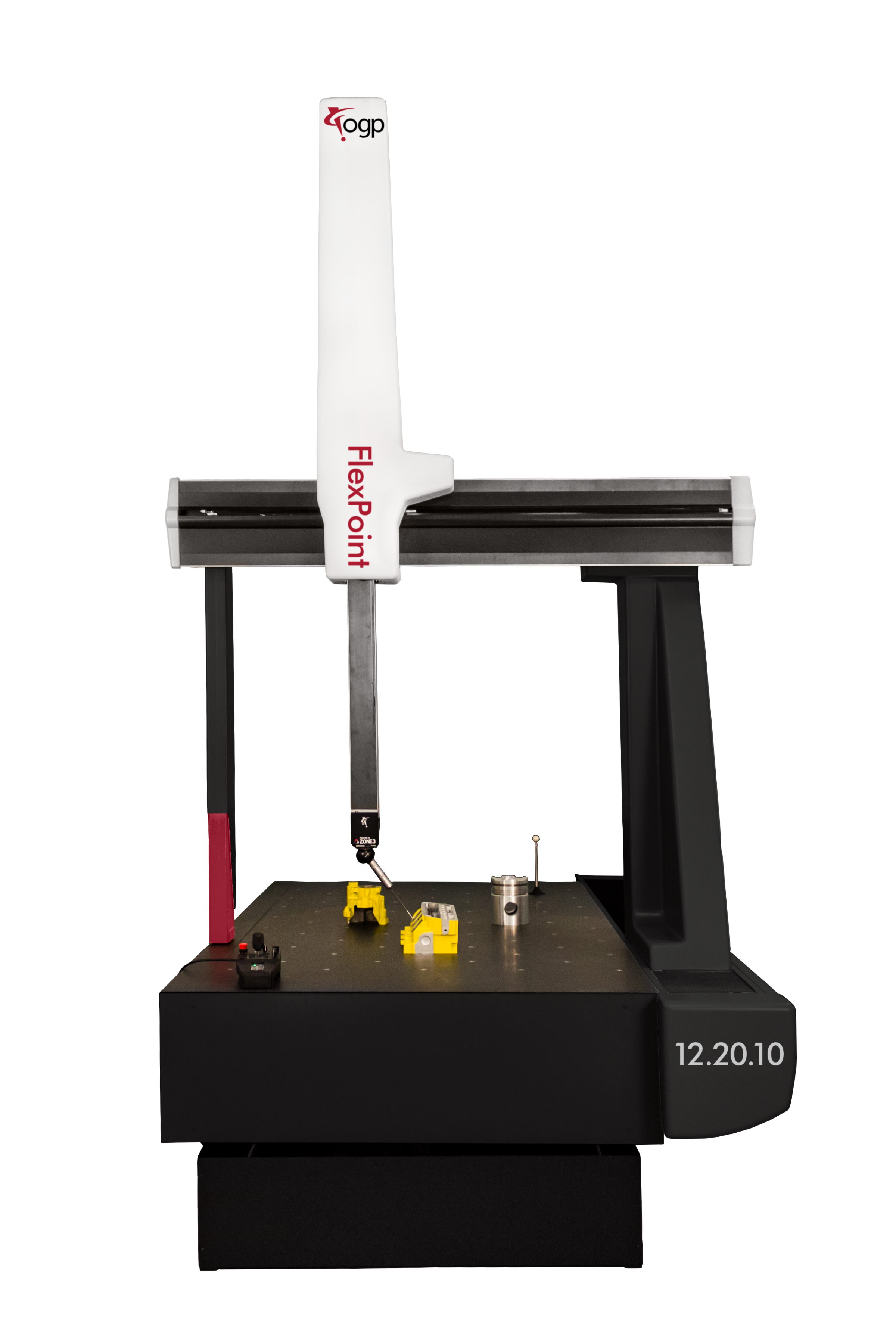

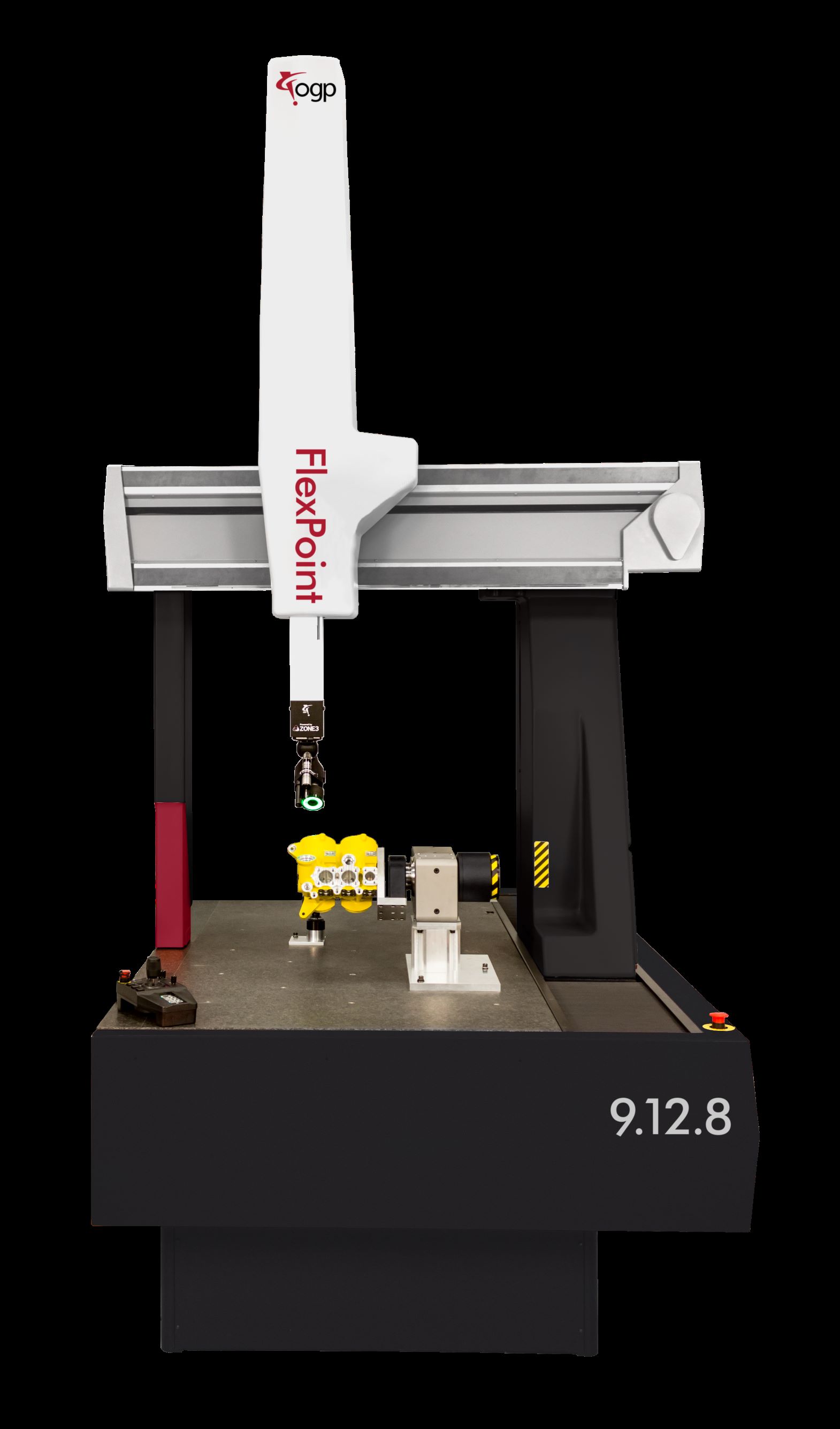

FlexPoint™ is the new generation of multi-sensor coordinate measuring machines from OGP®. FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems.
FlexPoint systems are available in sizes from 7.7.6 to 12.30.10 and feature VersaFlex – the patented sensor array offering up to three simultaneously available sensors on an articulating head. Measure parts with trusted scanning probe, tele-centric optics, and 1 μm accuracy TeleStar interferometric laser – without the downtime of exchanging sensors and constantly recalibrating.
Having all sensors available for immediate use eliminates the need for time consuming tool changes. CAD programmable articulation of the VersaFlex™ creates optimum positioning and alignment of all sensors. Parts normally requiring multiple machines for complete inspection, are efficiently measured on the FlexPoint, improving accuracy and speed. The high speed, air bearing, bridge transport employs active thermal compensation and is well suited to the factory floor.
FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems for large format parts.
The Multi-sensor Advantage – FlexPoint supports a wide range of tactile and non-contact sensors including SP25, TeleStar® Probe and SmartProbe® video sensor.
High Quality Construction – Stable transport design with carefully selected materials, rigid body members, air bearings on all axes, and active temperature compensation, to perform in shop floor environments.
Precise Compensation – Factory volumetric compensation using the Etalon® LaserTRACER system ensures the lowest possible uncertainty. In the field, machine accuracy verification can be performed according to ISO 10360.
XYZ Travel Standard
7-Series – 700 x 700 x 600 mm
9-Series – 900 x 1200 x 800 mm
12-Series – 1200 x 1500 x 1000 mm
*OPTIONAL*
7-Series – Y axis, 1100 or 1500 mm
9-Series – Y axis, 1600 or 2000 mm
12-Series – Y axis, 2000 or 3000 mm
