SmartScope® Flash Systems
SmartScope® Flash™ 3D Multisensor Measurement systems are built to handle a wide variety of measurement tasks. Flash systems offer the largest range of XYZ machine travels, from 200 x 200 x 150 mm to 650 x 660 x 400 mm, as well as models with travels up to 1500 x 1500 mm. Featuring patented AccuCentric® , a high quality, 12:1 zoom lens calibrates itself at every magnification change for consistent measurement accuracy. Flash also offers a range of illumination sources that offer flexible surface illumination and options for low contrast images as well. Innovative solid state illumination sources, color camera, and ZONE3® 3D CAD based metrology software make every Flash model a powerful video measuring system.




smartscope-flash-200

Screen Shot 2022-04-19 at 12.49.12 PM
XYZ Travel (mm)
Standard:
200 x 200 x 150

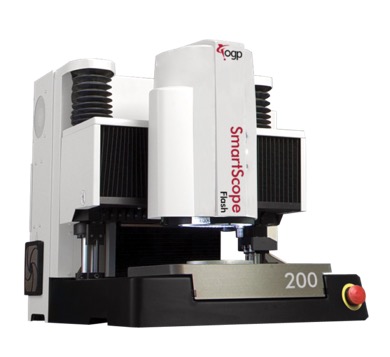

SmartScope® Flash™ 200 – the smallest member of the Flash family of systems – is a 3D multisensor dimensional measuring system that fits on a benchtop.
Designed-in accuracy – Elevating bridge design eliminates errors common to other designs
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles
Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors









smartscope-flash-302-2Screen Shot 2022-04-19 at 12.49.12 PM
XYZ Travel (mm)
Standard
300 x 300 x 250

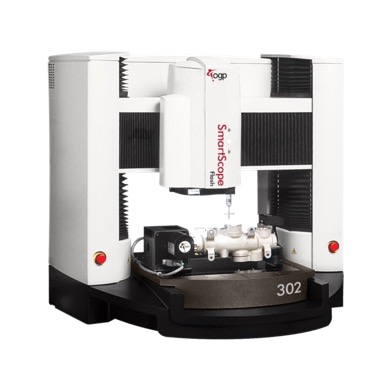

SmartScope® Flash™ 302 is a unique high capacity benchtop multisensor measurement system and one of the most versatile benchtop systems OGP offers.
Designed-in accuracy – Elevating bridge design eliminates errors common to other designs
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles
Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors









smartscope-flash-500

Screen Shot 2022-04-19 at 12.49.12 PM
XYZ Travel (mm)
Standard*
500 x 450 x 200

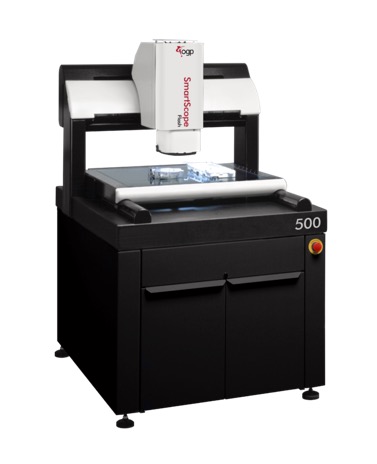

The SmartScope® Flash™ 500 is the perfect large capacity 3D multisensor measurement system. It offers all the great Flash features and performance in a large travel bridge-design system. Parts move on a precision DC motor-driven Y-axis stage while the optics assembly travels in the X-axis across a stable bridge cross member.
Measurement stability –Optics mounted on a rigid bridge support structure for
metrological integrity
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles
Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors

*OPTIONAL- Extended Y: 610 mm, Extended Z: 300 mm









smartscope-flash-635Screen Shot 2022-04-19 at 12.49.12 PM
XYZ Travel (mm)

Standard:
635 x 635 x 200

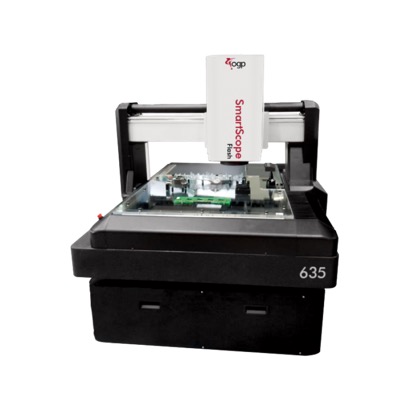

SmartScope® Flash 635 is a high-speed 3D multisensor dimensional measuring system for large parts that provides measurement speed and stability. A granite base and extruded, lightweight aluminum bridge provide a rigid orthogonal structure for measurement stability. While the instrument head moves in the X, Y, and Z axes, the part being measured remains stationary. Flash 635 also has:
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
High speed enhances productivity – High acceleration and velocity in all three measurement axes
High reliability transport – Rigid drive system contributes to long-term reliability
Multisensor versatility – Optional non-contact sensors and touch probes









SmartScope_Flash_670_OGP-650x650Screen Shot 2022-04-19 at 12.49.12 PM
XYZ Travel (mm)
Standard*:
650 x 660 x 200

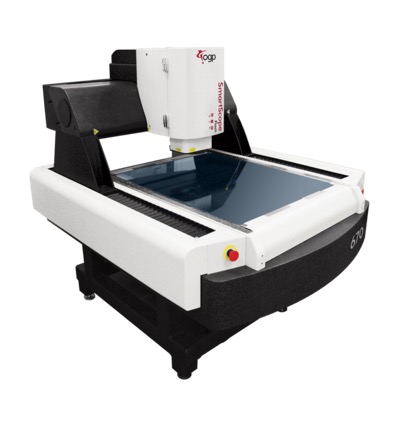

SmartScope® Flash™ 670 is an extra-large capacity 3D multisensor measurement system with a large XYZ measuring range. It is a Floor model system with solid granite base and moving bridge, providing a highly rigid structure for accurate positioning and repeatability.
Stationary part – Optics mounted on a moving bridge, so part remains stationary
Built-in measurement stability –A granite base and bridge provide a rigid, orthogonal structure for measurement stability
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles
Multisensor versatility – Optional touch probe, scanning probe, laser, and micro-probe sensors

*OPTIONAL- Extended Y: 610 mm, Extended Z: 300 mm










1550Screen Shot 2022-04-18 at 3.29.15 PM
XYZ Travel (mm)
Standard:
1500: 900 x 1500 x 200
1550: 1250 x 1500 x 200
1552: 1500 x 1500 x 200

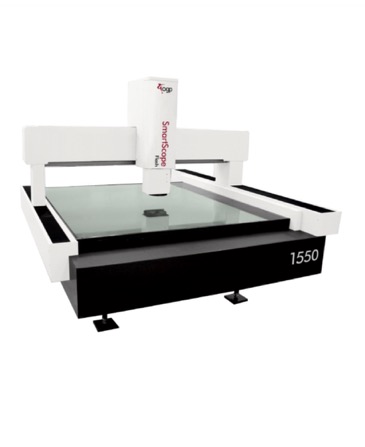

SmartScope® Flash™ 1500 |1550 | 1552 are floor model 3D multisensor measurement machines with an extended XY measuring range where the instrument head moves in the X axis across a steel bridge while the entire bridge moves on parallel tracks in the Y axis. The large measurement range of these systems accommodates large parts, such as LCDs, plasma displays, circuit boards, and multi-component fixtures.
Open work area – Optics mounted on a moving bridge — part remains stationary and easily accessible
Precision optics – High quality AccuCentric® zoom lens automatically compensates magnification for each zoom position
Superb illumination for the best video measurements – Standard profile light, coaxial surface light, and SmartRing™ light illuminate parts from all angles
Multisensor versatility – Optional touch probe and laser sensors
